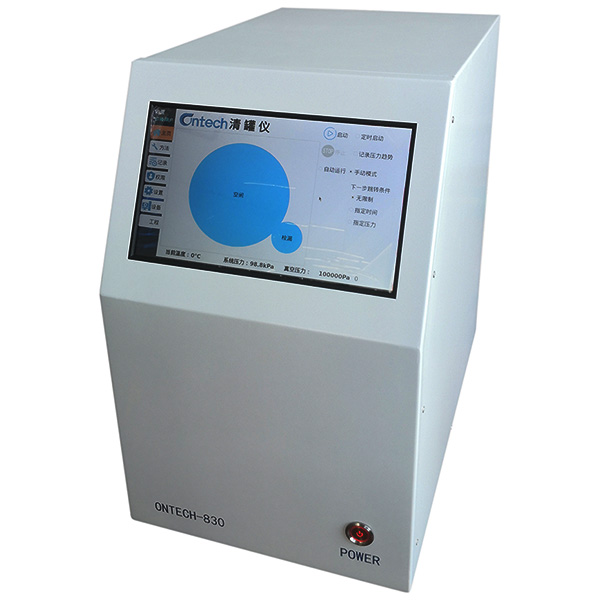

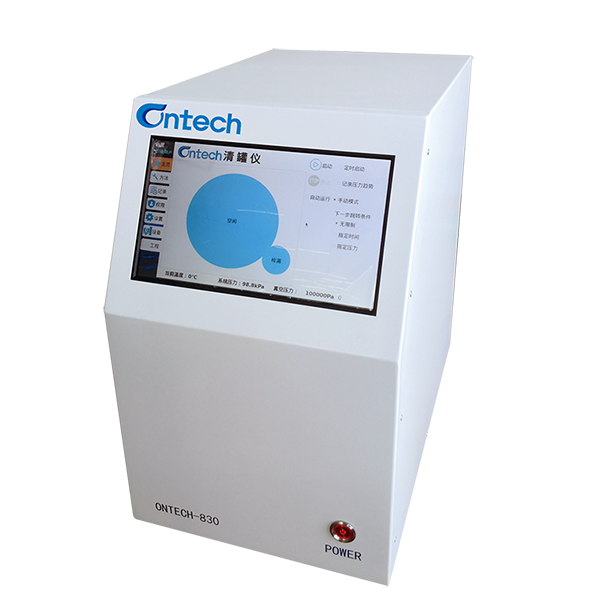

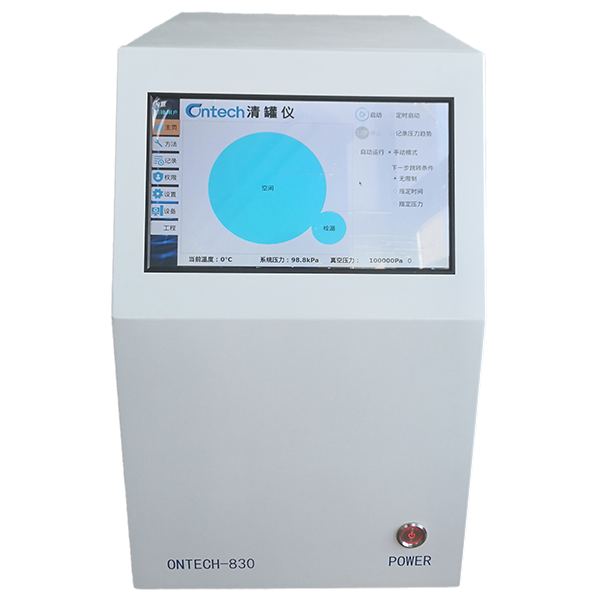

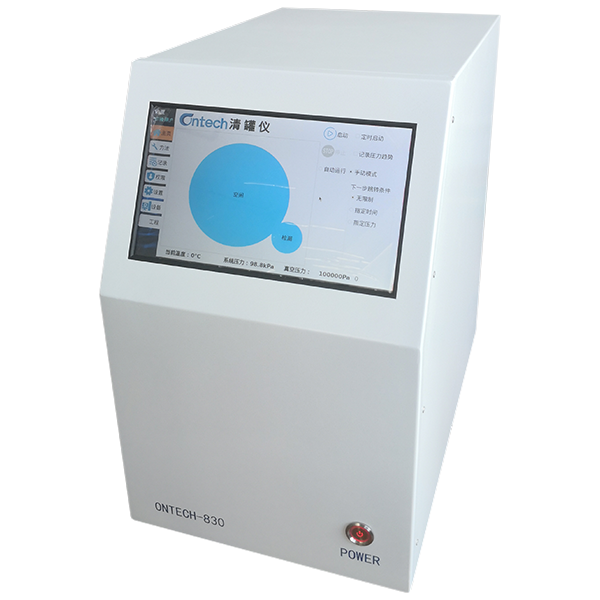

ONTECH830 SUMMA canister cleaning system

1. Can wash 1,3,6L sampling canister and Tedlar® air bag of various specifications;

2.  Automatic leakage detection during the cleaning process;

3.  Split type hot temperature box design, equipped with hot temperature box;

4.  Take the inflatable exhaust for multiple cycles, clean the remaining VOCs in the canister, the vacuum degree is higher, more efficient work;

5.  4 or 8 canister optional;

6.  Maximum vacuum 40 m Torr (single pump); maximum vacuum 10 m Torr (double pump);

7.  System pressure control range: 0~0.4mpa;

8.  Final pressure display in the canister.

Software Features：

1. Touch screen input, automatic or manual control cleaning;

2. Display and monitoring of the cleaning process status;

3. Three cleaning modes, and the parameters can be changed by users;

4. Display and view the cleaning records.

1. Pull-out pipe, which can wash 8 pieces 6-liter (or smaller) canister at a time;

2. Standard oil-free vortex vacuum pump, pumping speed up to 300 L/min, extreme vacuum (40mTorr); optional oil-free molecular diaphragm pump and molecular turbine pump, extreme vacuum (10mTorr);

3. Heating oven power 2.4 kW, temperature control accuracy ± 2℃, heating temperature room temperature + 10℃ ~220℃;

4. All the operations are controlled by the computer. The intuitive graphical operation software can display the dynamic flow path changes in real time.

Ontech830 Automatic canister cleaning system adopts two control mode: computer and touch screen, with flexible and convenient operation, QA / QC report print output, suitable for air sampling with different specifications of SUMMA  Canister (1 / 3 / 6L), Tedlar® air bag, it can  automatic clean and  automatic humidify,  realize the recycling of sampling containers, and effectively remove the residual VOCs in the sampling canister or air bag.
