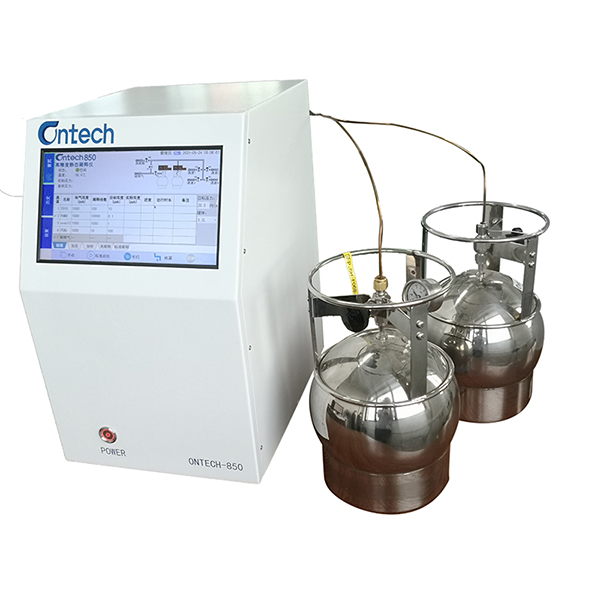

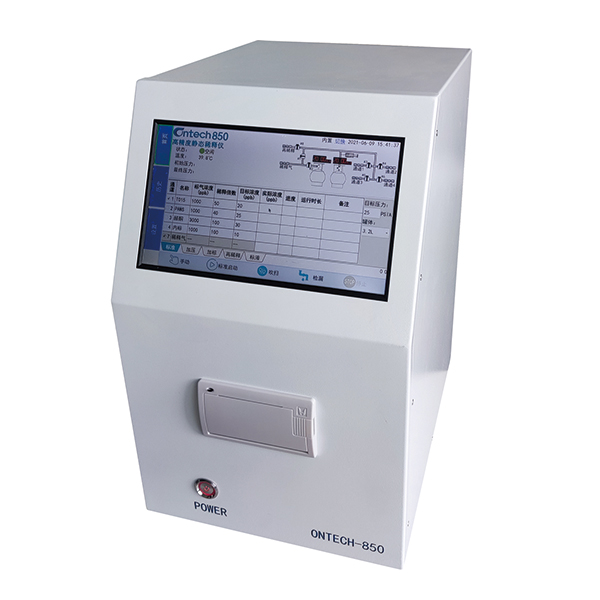

ONTECH850 High-precision static diluator

With unique patented technology and software control switch, It can be used for laboratory steel canister static dilution to save standard gas, a single dilution can reach 10,000 times dilution rate, without secondary dilution, faster and more convenient, wide application range, flexible use, efficient use of laboratory space.

We're here to help:

Easy ways to get the answers you need.

1. Unique design: a single dilution can reach 10000 times dilution rate, and meanwhile support multi-stage dilution function, powerful function, accurate accuracy;

2.  High precision: high precision MFC is used as the dilution control unit, standard gas and dilution gas are accurately measured, compared with the differential pressure flow control or canister final pressure control, dilution repetition is good, high accuracy (accuracy <1% in the case of 200 times);

3.  Standard gas saving: less standard gas than dynamic dilutions; no standard gas is discharged into the ambient air during the dilution process;

4.  High degree of automation: automatic leak detection function, automatic detection of the initial pressure of the sample canister; automatically calculate the actual dilution factor, control the calculated flow rate and flow speed; can set the final pressure of the SUMMA canister, automatically calculate the dilution ratio;

5.  Gas path has heating function, adjustable temperature, the software interface displays temperature; prevent flow path adsorption, and ensure the stability of gas dilution;

6.  Reliable performance: two internal independent standard gas dilution channels and sample dilution channels, pipeline, valve area and other flow path by inert treatment, to avoid sample contamination in the dilution process, to ensure stability;

7.  Intelligent and convenient: after the completion of the gas distribution can automatically print the gas distribution information label, including header, canister number, configuration person, standard gas type, concentration and other information, can be directly placed in the SUMMA canister label bag, easy to manage;

8.  Computer control, the system is compatible with Win 7 / 8 / 10 system;

9.  Number of channels: configure ≥6 channels, allowing to set up a special internal standard channel, standard gas channel and sample dilution channel, the number of standard gas channels can be expanded according to the user needs, to achieve a variety of standard gas configuration into a sampling canister;


1. Working environment: temperature-5~50℃; humidity 0-95% RH;
2.  Power supply voltage: 110V / 60Hz or 220V / 50Hz ± 10%;
3.  Size: 585.4×479×266.67mm;
4.  Weight: 8kg.

With unique patented technology and software control switch,  It can be used for laboratory steel canister static dilution to save standard gas, a single dilution can reach 10,000 times dilution rate, without secondary dilution, faster and more convenient, wide application range, flexible use, efficient use of laboratory space.
